BOM Tables Upload

Administration

Use the BomUpload.csv format to upload multiple Data tables through a single CSV file upload. The BOM Data Table Upload schema is used to accommodate multiple csv tables.

The schema for the BOM Tables Upload is different from the one used in import, it will accommodate multiple csv table uploads in the same csv.
  1. Populate the BomUpload.csv file with the BOM Data Tables to be uploaded. Refer to the following images for details.
  2. Refer to the Bulk Upload topic for upload instructions.

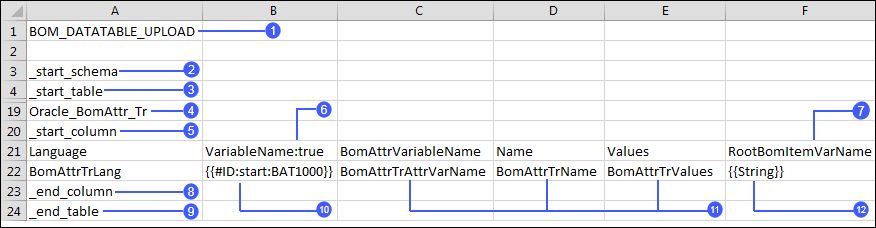

Bulk Upload csv file, fields 1 through 12

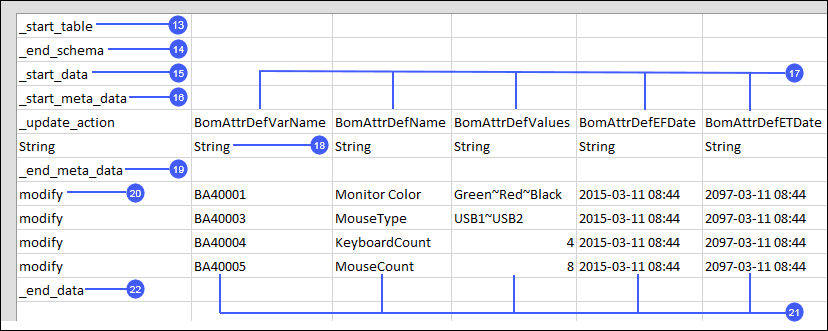

Bulk Upload csv file, fields 13 through 22

Number Name Description
1 BOM_DATATABLE_UPLOAD This tag specifies that the .csv file that is being uploaded is a BOM data table upload.
2 _start_schema Everything between this tag and _end_schema contains all the information about the tables including the table name and column that it will have.
3 _start_table Indicates the start of the table definition.
4 Table Name The name of the table that has to be added.
5 _start_column Contains the column definition for the table.
6 Natural Key column Setting the Natural Key column: {Column name}:true indicates that this column has to be set as the Primary Key for this table.
7 List of columns names The names of the columns to be used. These are the names that will appear in the data table.
8 _end_column Indicates end of column definition.
9 _end_table Indicates end of table definition.
10

{{#ID:start:BAT1000}}

Used for auto-populating columns. More precisely, the columns that are set as Natural Key columns.
The user can specify the format to populate the column.

For example: in this case the user has given BAT1000. The subsequent , variable names in that column will be BAT1000,BAT1001,BAT1002,etc.
11 Column names These are used to map the column to the data that will fill the column.
12 {{String}} This tag is used to insert an empty column within the table.{{String}} will create and empty column of type String. This feature is supported for String, Integer and Float.({{Integer}},{{Float}})
13 _end_schema Indicates the end of the schema definition.
14 _start_data Indicates the beginning of the data to be uploaded.
15 _start_meta_data All the columns with data and their data types are defined after this tag.
16 _update_action This column specifies whether the data is added to the Data tables or modified based on the natural key.
Note: This column is not required for the initial upload.
17 Column names This is where then column names indicated in (11) are used. This maps the column of a table to the corresponding data that it should contain. This feature is useful especially when adding the same data to 2 or more different columns. Give the same column name to the columns which need to have the same data.
18 Data Type Specifies the data type of the column.
19 _end_meta_data Specifies end of column declaration.
20 Update action
  • Use add when adding data
  • Use modify when modifying records. If "modify" is used when the natural key is not present in the data tables, an addition of record occurs.
21 Data The data to be added to the tables. It will be mapped on the basis of the column names as explained before.
22 _end_data Tag indicating the end of the data.

Troubleshooting

Error Solution
One or more of the tables did not get added or created, even though they exist in the upload file.

Ensure that all tables to be added have a "_start_table" schema tag.

The following errors may occur when uploading data that contains multi-byte characters, for example: Chinese, Japanese, etc.

  • The data that is added may contain a "¿" character
  • The BOM upload fails with the following error:
    "Invalid byte x of a 3-byte UTF-8 sequence"

This is an issue related to UTF-8 encoding. We are currently working on resolving this issue.

The schema gets created, but the data is not added.

Ensure that an "_end_meta_data" schema tag exists at the end of the data to be added.
