URL Access Functions

This function is used to convert a series of name-value pairs into a query string, which can be appended to a URL.

Syntax:

String makeurlparam( {String 'name1' : String "value1", [String 'name2' : String "value2", ...]})

Parameters:

Return Type: String

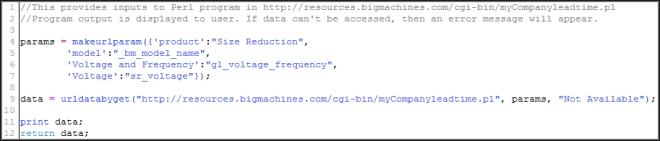

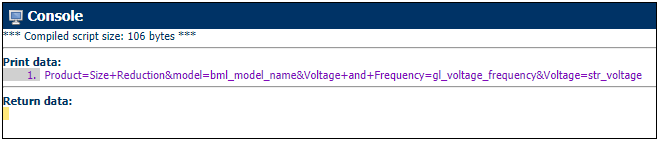

Example:

This function sends and receives data from a URL using HTTP GET, POST, PUT, or PATCH methods.
The HTTP DELETE method can also be used to delete data from a URL

Syntax:

urldata(String url, String httpMethod, [Dictionary headers], [String body], [Integer timeout]);

Parameters:

Return Type: Dictionary

Example Response: The urldata() function returns a dictionary which contains the HTTP response from the external resource.

The key-value pairs in the table below are an example of a simple response.

Response Handling Example

response = urldata(url, method, headers);
print(get(response, "Status-Code")); // print the status code
print(get(response, httpHeaderName)); // print the value of the header named httpHeaderName
print(get(response, "Message-Body")); // print the message body

Examples using urldata:

Send a GET request without a header

response=urldata("http://<hostname>/<path>","GET");

Send a GET request with a header and a timeout

headers=dict("string");
put(headers, "content-type", "application/json");
response=urldata("http://<hostname>/<path>", "GET",headers,"", 5000);

{Status-Code=-1, Error-Message=Read timed out}

Send a PUT request with a header

headers=dict("string");
put(headers, "content-type", "application/json");
response=urldata("http://<hostname>/<path>","PUT",headers,jsonBody);

Send a DELETE request with headers that specify Basic authentication

headers=dict("string");
encodecredential = encodebase64("<username>:<password>"); // for Authentication
authstring="Basic " + encodecredential;
put(headers, "Authorization", authstring); //optional if service is from the same site
response=urldata("http://<hostname>/<path>","DELETE",headers);

Send a GET request with headers that specify Bearer authentication

headers=dict("string");
put(headers, "Authorization", "Bearer $_acess_token_dynamics365");
response=urldata(http://<hostname>/<path>",GET, headers);

Send a PATCH request using headers that specify Basic authentication

headers=dict("string");
encodecredential = encodebase64("<username>:<password>"); // for Authentication
authstring="Basic " + encodecredential;
put(headers, "Authorization", authstring); //optional if service is from the same site
put(headers, "content-type", "application/json");
response=urldata("http://<hostname>/<path>","PATCH",headers,jsonBody);

This function retrieves data from a URL address by the HTTP Get Method. It is used for RESTful Web Services and is faster than the POST method.

Syntax:

String urldatabyget(String url, String parameters, String defaultValue,[Integer timeout])

Parameters:

Return Type: String

Example:

This function retrieves data from a URL address by the HTTP  POST Method.

• This function passes parameters separately from the URL. It is useful when handling sensitive data and/or larger requests. It allows for encrypted requests. This is used for SOAP Web Services. For more information, see the topic Using SOAP with BML.
• Refer to Same Server Authentication for information on authorization for internal RESTful web services calls.

Syntax:

String urldatabypost(String url, String parameters, String defaultValue, [Integer timeout]]])

Parameters:

Additional parameters

Oracle CPQ allows additional parameters that can be passed to urldatabypost to pass header values.

headers = dict("string");
put(headers, "SoapAction Key", "SoapAction Value");
return urldatabypost("https://cpluto.bigmachines.com/httpreceiver", "", "", headers);

Return Type: String

Example of urldatabypost:

As the function suggests, this information is not available.

Sample Request

Retrieves data asynchronously from a URL using HTTP POST to submit parameters (see the makeurlparam function for formatting).

Syntax:

String urldatabypostasync(String url, String parameters, String defaultValue, String callbackActionVarName, [Dictionary headers, [Boolean returnErrorResponse,[Integer timeout]]])

Custom HTTP headers can be applied by passing a Dictionary of Strings in the optional headers parameter.

Parameters:

1. On success, the function returns the response String.
2. If the function fails and the optional returnErrorResponse parameter is set to True, the function returns a specific HTTP error code message.

3. Otherwise, the function returns the defaultValue.

Return Type: String

Examples of urldatabypostasync:

urldatabypostasync("http://www.example.com", "a1=v1&a2=v2", "error message", "callbackActionVarName");

urldatabypostasync("http://www.example.com", "a1=v1&a2=v2", "error message", "callbackActionVarName", myHeaders); //Uses custom HTTP headers

urldatabypostasync("http://www.example.com", "a1=v1&a2=v2", "", "callbackActionVarName", dict("string"), true); //Uses the HTTP error code message (without custom headers)

urldatabypostasync("http://www.example.com", "a1=v1&a2=v2", "", "callbackActionVarName", myHeaders, true); //Uses both custom headers and the error code message

//SENDING ASYNC REQUEST- SAMPLE BML

endPoint="https://endpoint.customer.com" //where call is sent
headerValues = dict("string");
put(headerValues, "Content-Type", "text/xml; charset=utf-8");
put(headerValues,"replyinfo","$_BM_ASYNC_ADDRESSING_TOKEN$");//will contain info for transaction to call back
errorString = "Error in async invocation"; //error message if cannot connect successfully with external system
callback="AsyncResponseAction";//variable name of the CPQ action that will be invoked by the external system
soapbody=""<soap:Body> <more>otherinfor</more> </soap:Body>" ;" //other information that external system may need

callasync= urldatabypostasync(endPoint , soapbody ,errorString,callback,headerValues,true); // sends the soap call and returns response to variable.

return "done";

//SAMPLE OF $_BM_ASYNC_ADDRESSING_TOKEN$ where MessageID has particular info, and Address is endpoint
<wsa:MessageID xmlns:wsa="http://www.w3.org/2005/08/addressing">
uuid:276653d6cd0b486a9907428102cc8dd8
</wsa:MessageID>
<wsa:ReplyTo xmlns:wsa="http://www.w3.org/2005/08/addressing" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/" soap:mustUnderstand="1">
<wsa:Address> https://mycpqsite.com/v2_0/receiver/callback </wsa:Address>
</wsa:ReplyTo>

//SAMPLE ASYNC RESPONSE.
<?xml version='1.0' encoding='UTF-8'?>
<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/">
<soapenv:Header>
<wsse:Security xmlns:wsse="http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-wssecurity-secext-1.0.xsd">
<wsse:UsernameToken>
<wsse:Username>WS_USER</wsse:Username>
<wsse:Password Type="http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-username-token-profile-1.0#PasswordText">password</wsse:Password>
</wsse:UsernameToken>
</wsse:Security>
<wsa:relatesTo
xmlns:wsa="http://www.w3.org/2005/08/addressing">uuid:95d133028f0b4fb59903dbd888fcac22</wsa:relatesTo>
</soapenv:Header>
<soapenv:Body/>
</soapenv:Envelope>

//SAMPLE PARSING IN THE CALLBACK ACTION
//information from external system will be in _system_async_payload variable
path = "//orderNumber";
orderNumber = readxmlsingle(_system_async_payload, path);

return "1~orderNumber~" + orderNumber;

This function supports remote approvals by sending multi-part messages with attachments.

Syntax:

Dictionary urlmultipartbypost(String url, String payload, [Dictionary headers, [Dictionary attachments,[Integer timeout]]])

Custom HTTP headers can be applied by passing a Dictionary of Strings in the optional headers parameter.

Parameters:

Sample Input:

url: <request url>

payload:

{
   "processDefId": "default~CPQApproval!1.0~QuoteApprovalProcess",
   "serviceName": "QuoteApprovalProcess.service",
   "operation": "start",
   "payload": "<quot: start xmlns:quot='http://xmlns.oracle.com/bpmn/bpmnCloudProcess/CPQApprovalDemo/QuoteApprovalProcess'> <requestor>Suyog</requestor> <quoteId>123456</quoteId> <quoteTotal>12567</quoteTotal> <discountPercentage>23</discountPercentage> <requestorEmail>approve_pCSsubmit</requestorEmail> </quot:start>",
   "action": "Submit"
}

Sample Return

On success, a Dictionary representation of the http response, such as “Status-Code”, “Content-Type”, “Message-Body”, etc., is returned.

Authorization is optional when making a web services call that is internal to CPQ. You can omit the authorization string in the header when using urldata() and urldatabypost() functions. When no authorization string is provided the current user's login credentials are used.

Example using urldatabypost():

headers=dict("string");
//Authorization is not required when calling an Oracle CPQ web service that is on the same site
put(headers, "Content-Type", "application/json");
response=urldatabypost("http://<mycpqsite>.oracle.com/<Oracle CPQ endpoint>, jsonBody, "", headers);

An optional timeout parameter can be set on the urldata, urldatabyget, urldatabypost, urldatabypostsync, and urlmulitpartbypost functions.

• The timeout value is in milliseconds.
• This parameter overrides the General Site Option "BML URL Function Timeout".
• If a timeout occurs, a dictionary representation of the error response is returned with Status-Code and Error-Message as keys.
